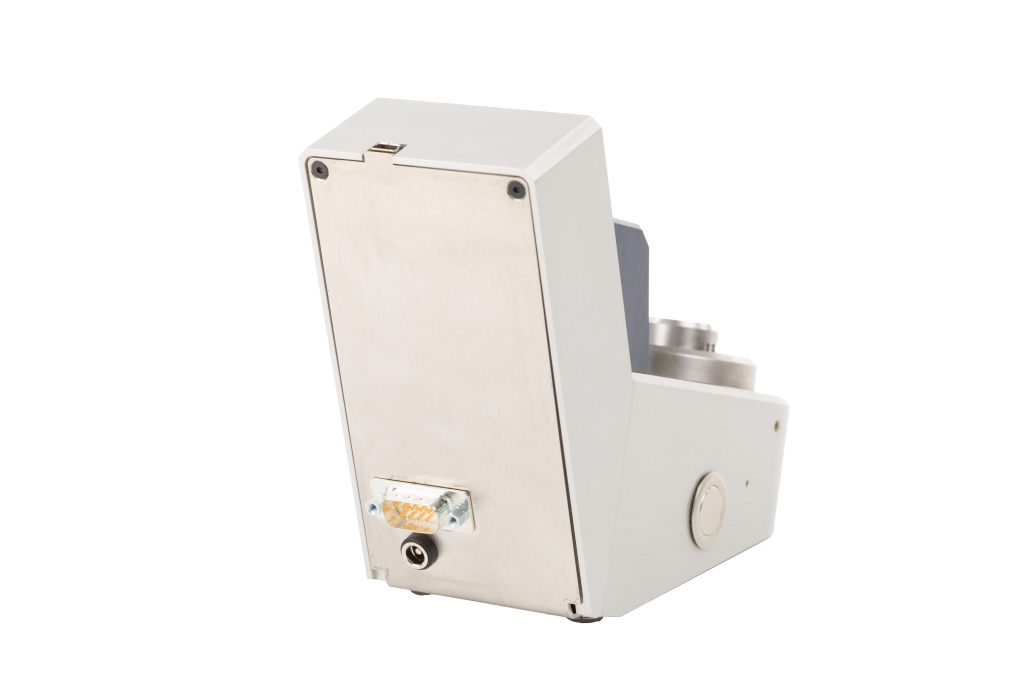

AMFP

Pushers force measuring device

Enginered and made in Switzerland

Device used to measure the force of the pushers of a movement or a watch head.

Machine functions

  • Mobile, compact and silencer equipement.
  • Peak force measurement, max 50N.
  • Affichage matriciel.
  • Adjustable angle pushers ± 45°. Cycle time for one measure : about 5 seconds.
  • Factory calibrated system.
  • Adjustement of the mini and max force with warning light (red-green LED).
  • Laying made according to the characteristics of the movement.
  • USB port
  • RS232 output for printer

Technical specifications

Supply voltage :
Power :
Capacity :
Weight :
Dimensions (l/d/h) :

12 VDC / 1500 mA
18 W
1 movement
1.4 Kg
70 x 180 x 136 mm

download the technical sheet
