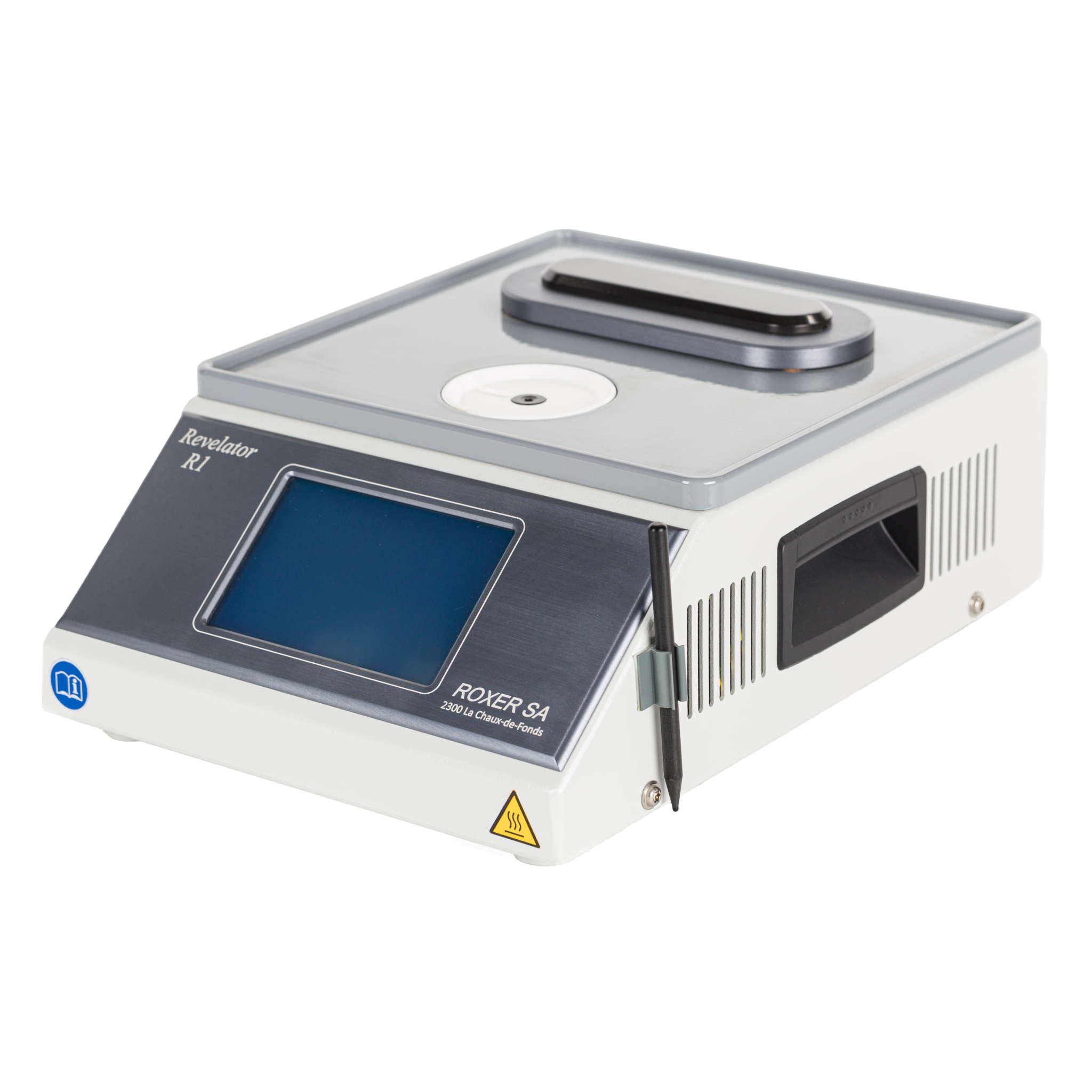

REVELATOR R1 / R10
Machine for revaeling condensation
Enginered and made in Switzerland
The REVELATOR is a device allowing to replace advantageously the test of the "water drop", by the intermediary of cold touch with parameterizable temperature.
Machine functions
- For revealing condensation on crystals.
- The cold point setting can also reveal condensation on thick crystals.
- Stability of hot and cold temperatures, ensuring test repeatability.
- Heating plate as standard on REVELATOR R1.
- Programmable temperature and time parameters.
- Touch-screen.
- Option : heating plate for REVELATOR R10.
Technical specifications
Supply voltage :
Power :
Heating temperature *
Capacity :
Weight :
Dimensions (l/d/h) :
* With heating plate
REVELATOR R1
110-230 V / 50-60 Hz
50 W
40 à 50°C
1 watch
4.5 Kg
220 x 310 x 115 mm
REVELATOR R10
110-230 V / 50-60 Hz
300W
*40 to 55°C
10 watches
18 Kg
500 x 550 x 140 mm
