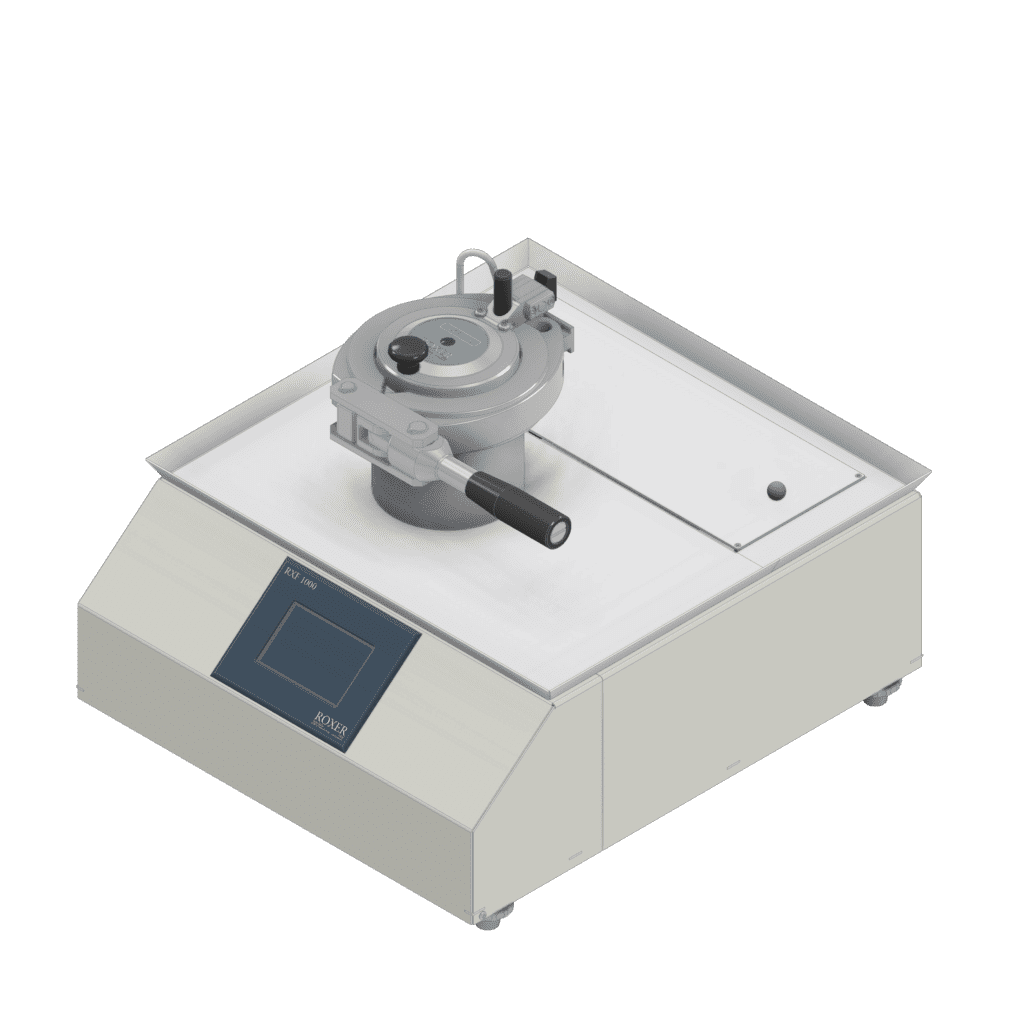

RXF 1000
Water pressurisation machine
Enginered and made in Switzerland
Device designed for leak testing watches and other components by immersing them in pressurized water.
It can be pressurized up to 1'000 bar (~10’000 meters under water) for a configurable time.
Machine functions
- Pressure up to 1’000 bar (~10’000 meters depth)
- Stainless steel tank and water collection tray
- Electrical and pneumatic connection
- Loading on trays
- Touch-screen
Software fonctions
- Intuitive menus in 5 languages
- Many adjustable parameters
- Simple programming of cycle times, step times and transition times
- Up to 18 storable programs
- History of last 10 cycles and faults stored in memory
- Automatic tank filling and emptying function
Technical specifications
Supply voltage :
Power :
Min. input pressure :
Working pressure :
Rise time 0 to 1’000 bar :
Tank internal Ø :
Tank internal height :
Capacity :
Weight :
Dimensions (l/d/h) :
110-230 V / 50-60 Hz
200 W
5 bar
0 to 1’000 bar
~10 min (minimum)
80 mm
125 mm
1 to 5 watches
54 Kg
480 x 560 x 355 mm
