NATATOR 40
NATATOR 40 MOBIL

Water pressurisation machine

Enginered and made in Switzerland

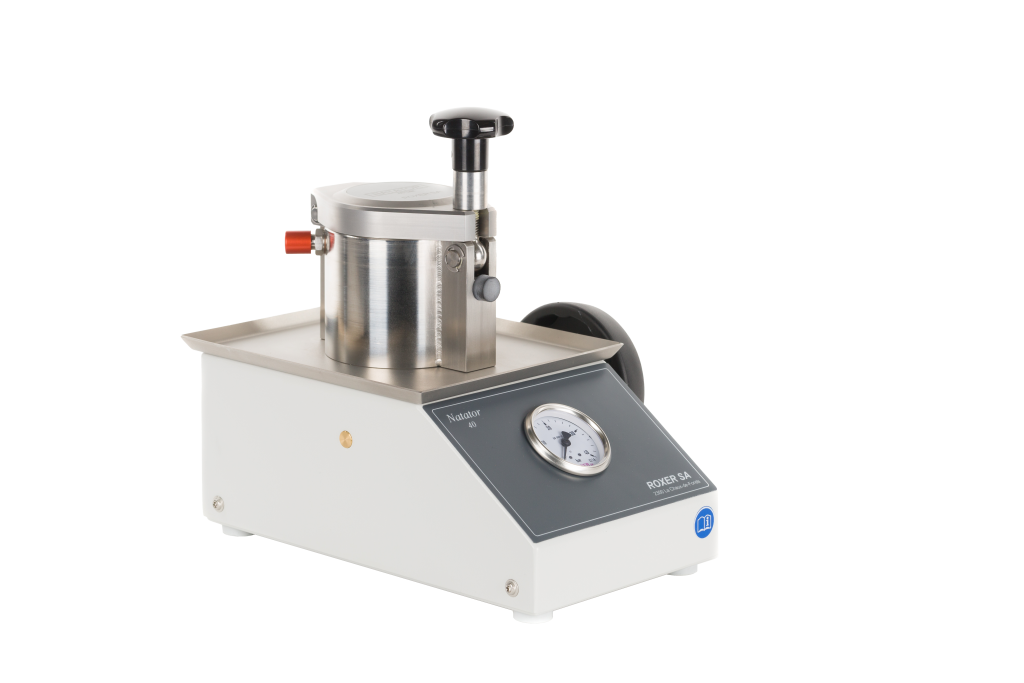

The Natator 40 and 40 mobile are devices designed for leak testing watches and other components by immersing them in pressurized water. Pressurization up to 40 bar (~400 meters under water) is possible. They operate without an external power supply and are entirely manual.

Machine functions

  • Pressure up to 40 bar (~400 meters depth)
  • Stainless steel tank and water collection tray
  • No connection required
  • Total autonomy for pressure management thanks to ratchet-type handwheel
  • Manomètre incorporé
  • Natator 40 mobile with tappets function
  • Ideal for unitary control and after-sales service

Technical specifications



Working pressure :
Tank internal Ø :
Tank internal height :
Tank capacity :
Capacity :
Weight :
Dimensions closed device (l/d/h) :
Dimensions open device (l/d/h) :

NATATOR 40

0 to 40 bar
67 mm
65mm
0.23L
1 watch
8.2 Kg
210 x 280 x 265 mm
255 x 280 x 310 mm

NATATOR 40 MOBIL

0 to 40 bar
67 mm
65mm
0.23L
1 watch
8.2 Kg
210 x 280 x 265 mm
255 x 280 x 310 mm

download the technical sheet
