RX 06

Rotary vacuum pencil

Enginered and made in Switzerland

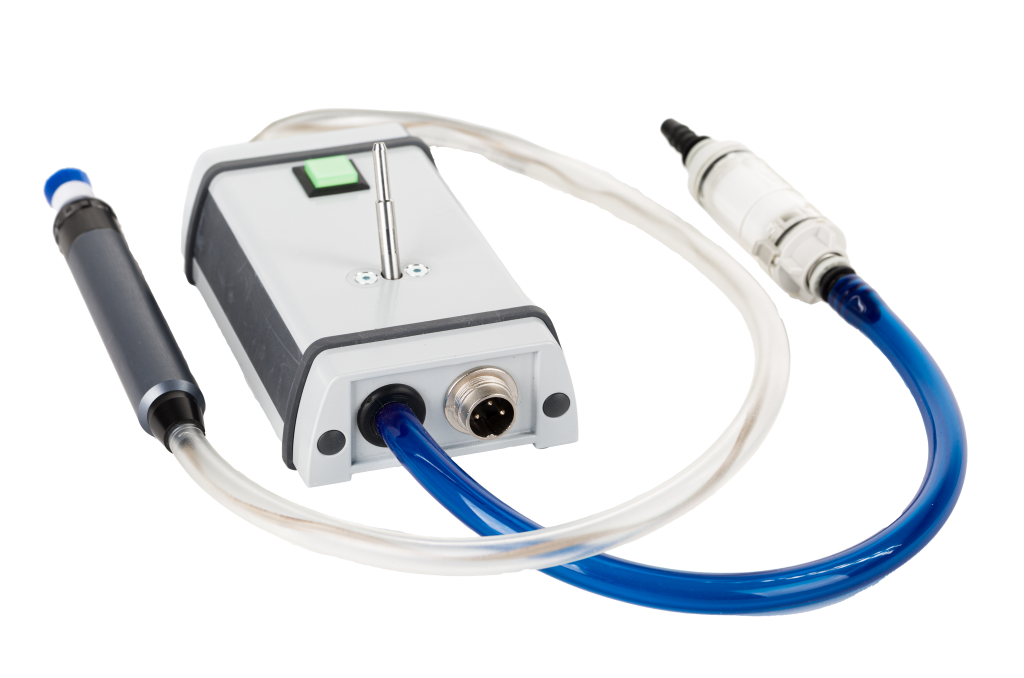

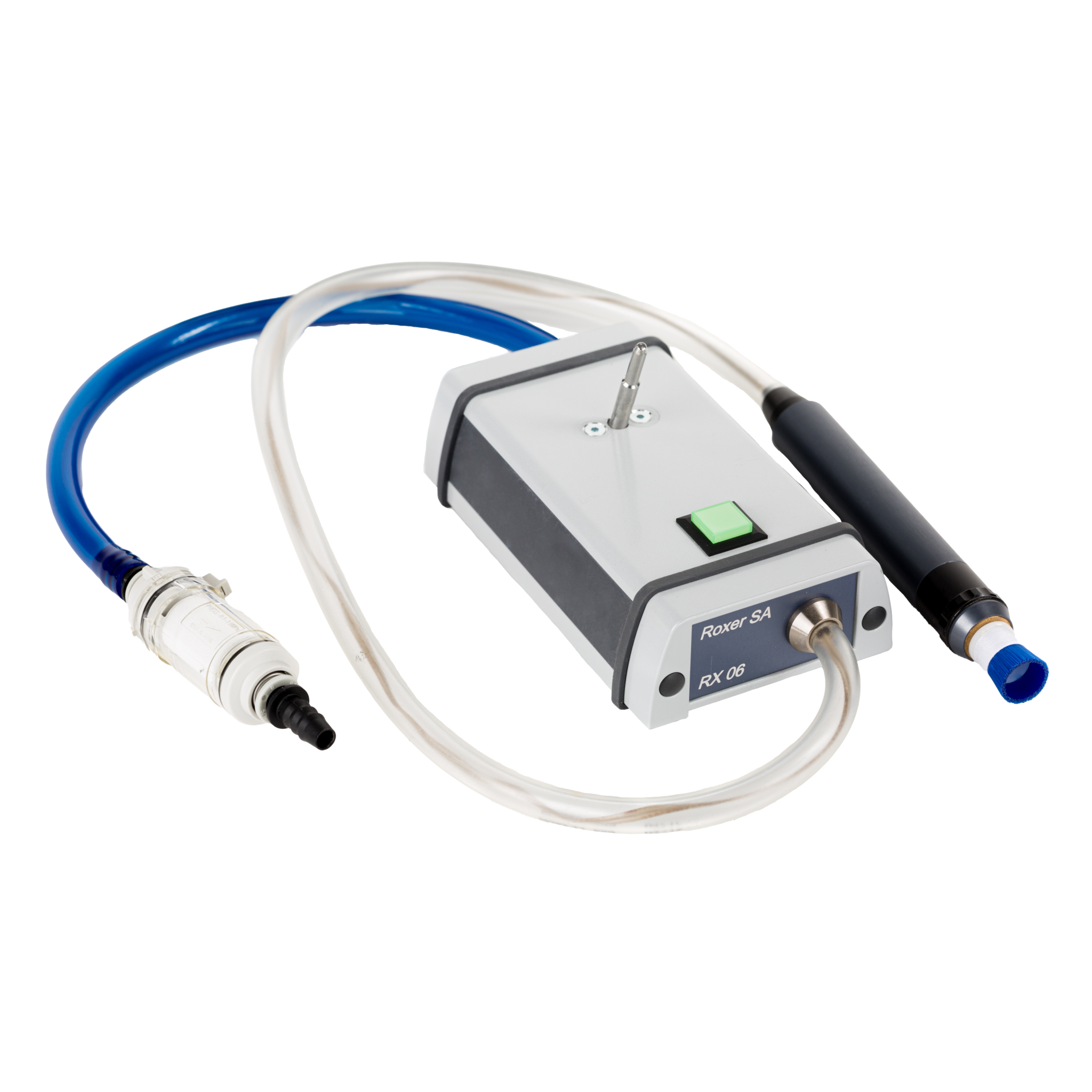

The device consists of a motorised vacuum pen and a control box acting as a stand.

The vacuum is activated when the pen is removed from the holder. A filter at the entrance of the device allows to recover the aspirated particles.

Machine functions

  • Motorized vacuum pencil.
  • Control box / support.
  • Alternative rotation by push button.
  • Pick and place function

Technical specifications

Power supply :
Pencil :
Alternative rotation :
Dimensions (l/d/h) :

115-230 V, 50-60 Hz
Ø 18 x 110 mm
400 rpm, 5.2 Hz
L 80 x P 200 x H 200 mm

download the technical sheet
