PVE-A

Automatic electric screwing press

Enginered and made in Switzerland

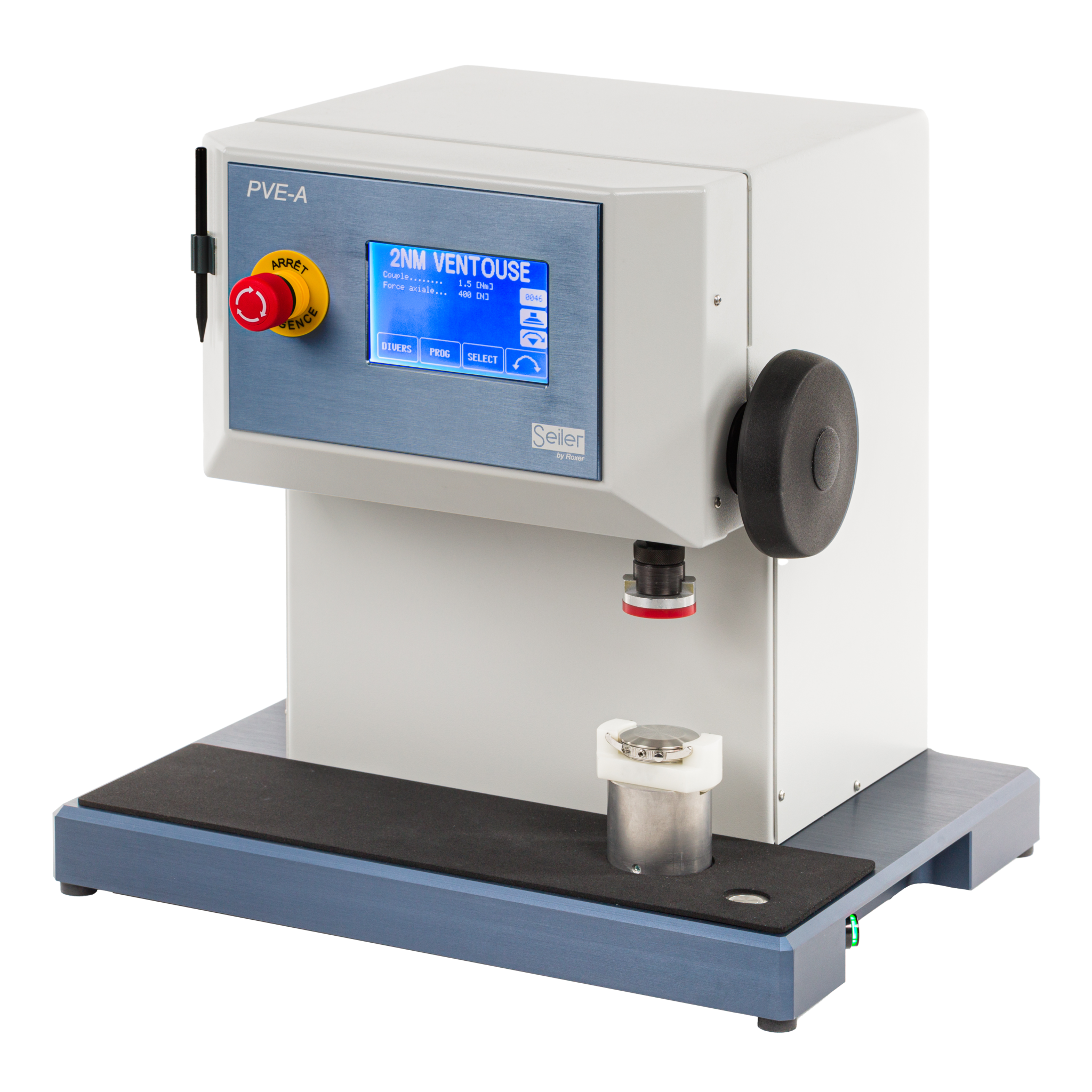

The machine PVE-A is an electric screwing press with electronic speed and torque control for opening and closing screw-down case backs. Automatic feed with electronically controlled pressure force ensures constant pressure on the back during screwing. The electronic control allows to adjust the different parameters of the machine using a touch screen.

Machine functions

  • For opening and closing screw-down case backs.
  • Automatic alignment.
  • Unscrewing test function.
  • Electronic control.
  • Screwing with spanner or suction cup.
  • Ensures constant pressure on the case-back during screwing.
  • Interchangeable base.
  • Touch-screen.

Technical specifications

Supply voltage :
Power :
Rotation frequency :
Number of unscrewing turns :
Screwing torque :
Unscrewing torque :
Axial force :
Weight :
Dimensions (l/p/h) :

110-230 V / 50-60 Hz
800 W
0.5 to 5 rps
0.5 to 9 turns
0.8 to 12 Nm
0.8 to 12 Nm
5.0 to 400 N
27 kg
400 x 350 x 400 mm

*Accessories : see presses accessories data sheet
